Tamiya 1:10 XV-02 Pro Chassis - KIT TAM-58707

Tamiya is proud to announce this shaft-driven 4WD chassis kit for rally cars, an addition to the XV chassis series that will be a popular addition to the R/C rally series.

This shaft-driven 4WD chassis kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear long propeller shafts, which allows running on surfaces from on-road to flat dirt. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis, plus 4-wheel independent double wishbone suspension with aluminum-cylinder long oil dampers.

About the Model

• This is a 1/10 scale R/C chassis assembly kit.
• Equipped with front mid-ship motor plus front and rear long propeller shafts of the some length.

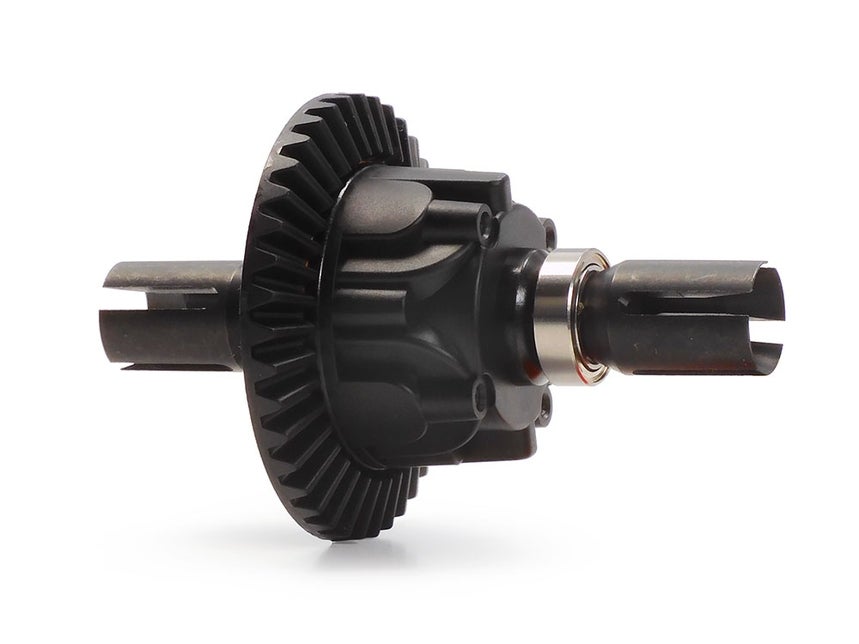

• Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
• Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
• Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring the 6-degree caster angle (XV-01 chassis: 10-degree caster angle), and bumpers with skid angles to reduce surface contact.
• Includes an aluminum servo mount.
• The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.

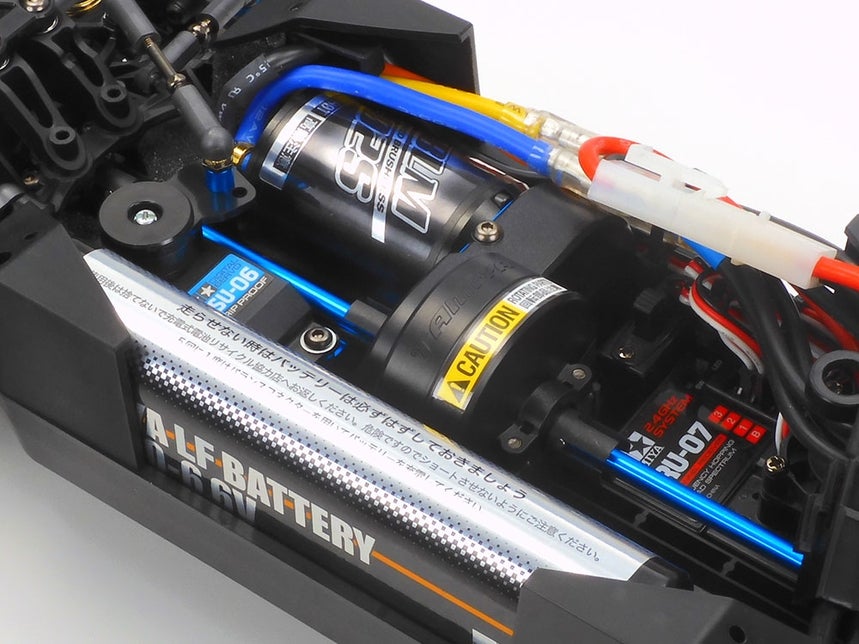

• It features a longitudinal battery pack position in the center-left for optimum balance.
• Long aluminum dampers are employed at front and rear.
• A polycarbonate chassis cover with wheel well liners helps prevent dirt and dust from getting inside.
• Suspension arms and front uprights are based upon the XV-01 chassis kit.

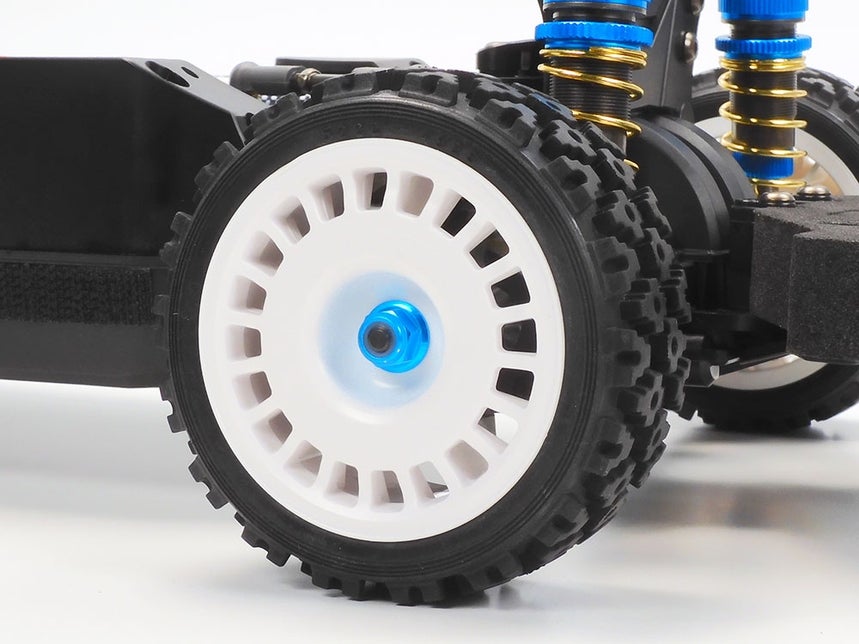

• Rally dish white wheels are paired with rally block tires.
• Please note, the XV-02 PRO Chassis Kit, does not include motor, please use a recommended Tamiya motor.

Specs:

• Chassis Type: XV-02 Assembly Kit
• Chassis length: 368mm (excluding body)
• Chassis width: 180mm
• Wheel base: 257mm
• Frame: bathtub type
• Drive system: front midship motor / shaft drive 4WD
• Diff gear: oil-filled gear differential for both front and rear
• Shock Damper: CVA Oil Filled
• Bearings: Includes full ball bearings
• Steering = 3-split tie rod type
• Suspension = 4-wheel double wishbone
• Damper = Aluminum cylinder long oil damper (blue cap specification)
• Gear ratio = 9.58: 1 when using the 19T pinion included in the kit (10.71: 1 to 6.28: 1 in combination with the separately sold pinions (Up to 14 types of gear ratios can be selected)

Required Items:

• 2-Channel radio with receiver (Find Radios here)
• Electronic Speed Control for brushed motors (Find ESC here)
• Steering servo: Halko Turner 1.0 WP (More Servos here)
• 7.2volt battery pack: Nimh pack with Tamiya connector
• Compatible charger (Find Chargers here)
• Rally Body (257mm wheelbase) (Find Rally Bodies here)
• Paint for the body
